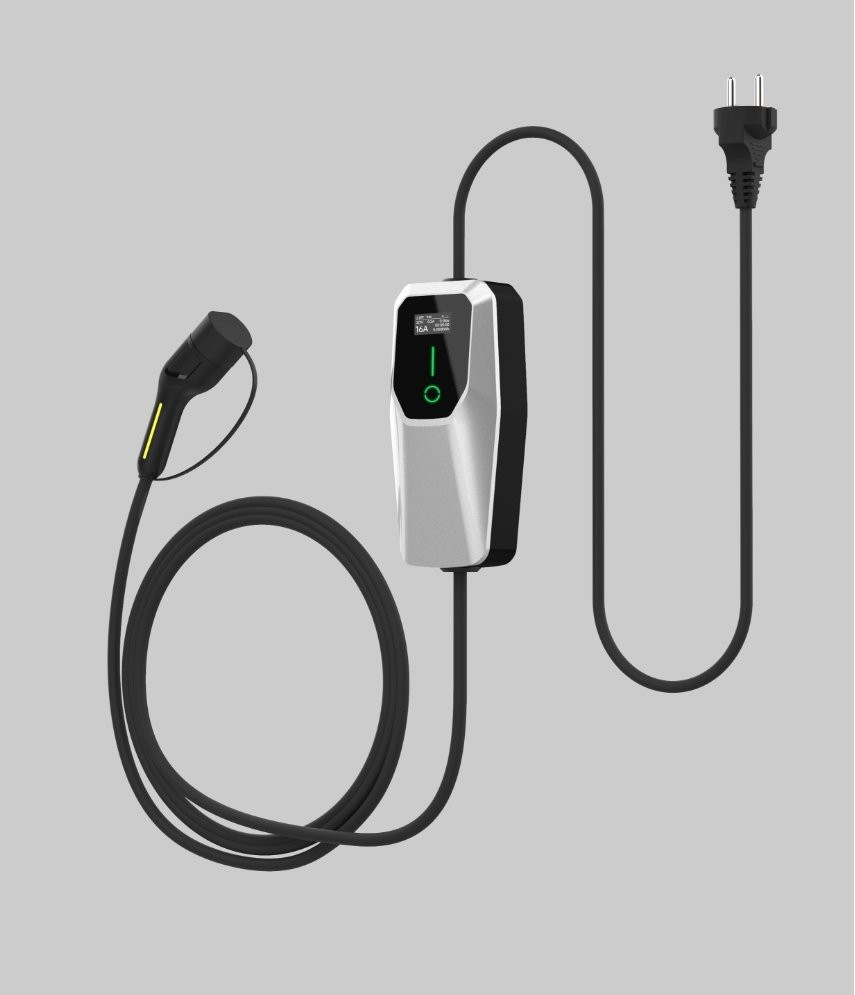

22kw Three phase IP65 IEC62196 type2 portable charger

●  Max Power:22kw
●  Rated Voltage:480V
●  Rated Current:32A
●  Cable Length:5m
●  Wall side plug:Red CEE
●  Protection degree: IP65
●  RCD:30mA+DC6mA
●  Working temperature: -40℃~+55℃
●  Flame Retardant:UL94V-0
●  Mating Cycles:≥ 10000
●  Certifications:CE.TUV
●  Warranty:2 years


Feature:

Output Power:3.6kw/7.2kw/11kw/22kw

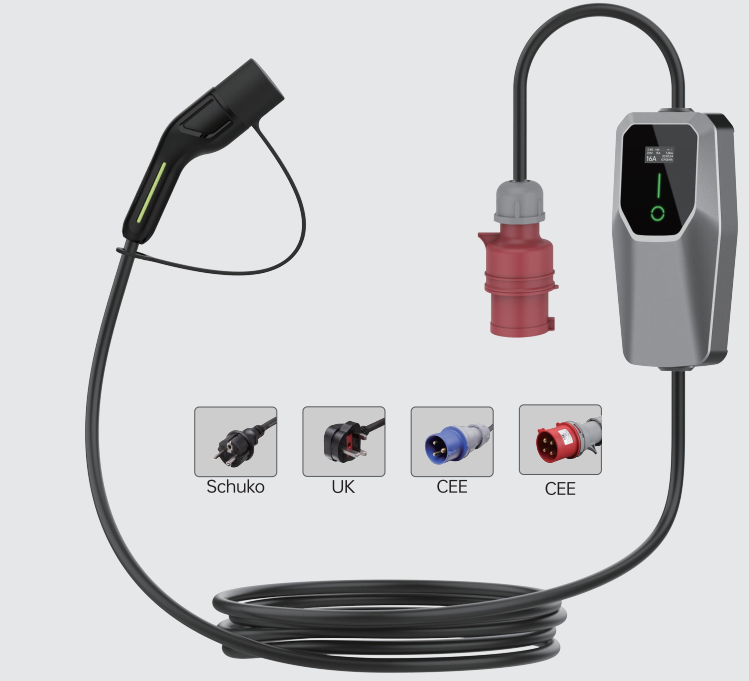

Wall side plug:blue CEE,UK,schuko

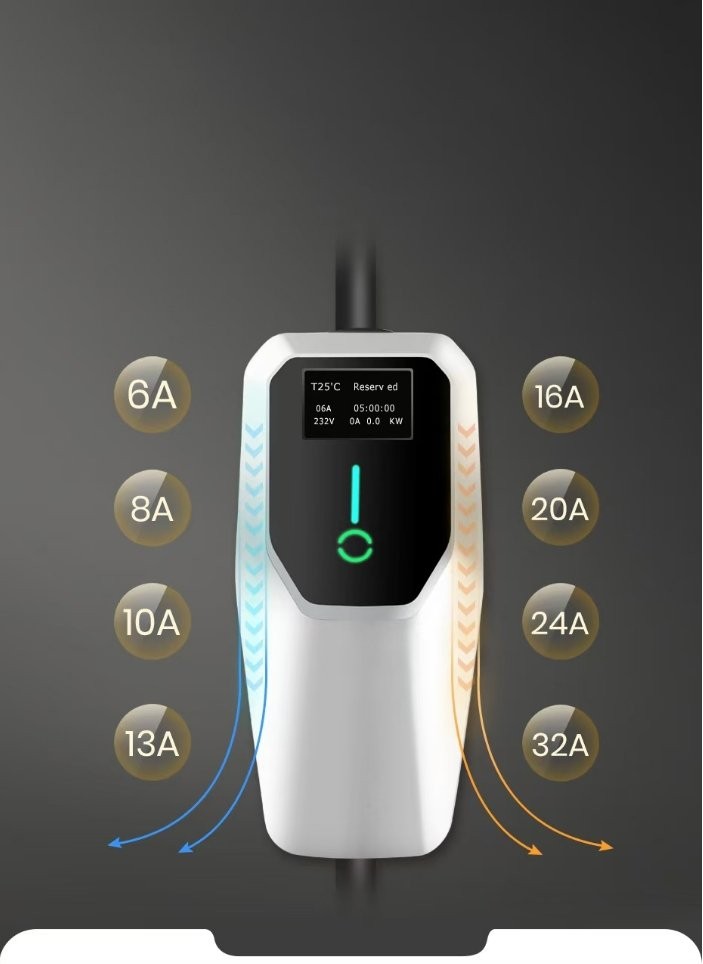

Adjustable current:6/8/10/13/16/20/24/32A

Function:pre-set charging time,adjustable current

Protection measures:Leakage protection, over temperature protection, lightning protection, over current protection,automatic power failure, under voltage protection, over voltage protection, CP failure

It owns temperature detection and automatic fault repair functions.The handle is 103mm long, has rounded corners, and is designed with anti-slip lines, which is more in line with European and American ergonomic design.


Standard:

IEC61851.1-2017/IEC62196.2-2016/EN61851.1-2001/EN61851.21-2001
ΕN61851.22-2001/IEC61851.1-2017/IEC62196.2-2016/IEC62752-2018
