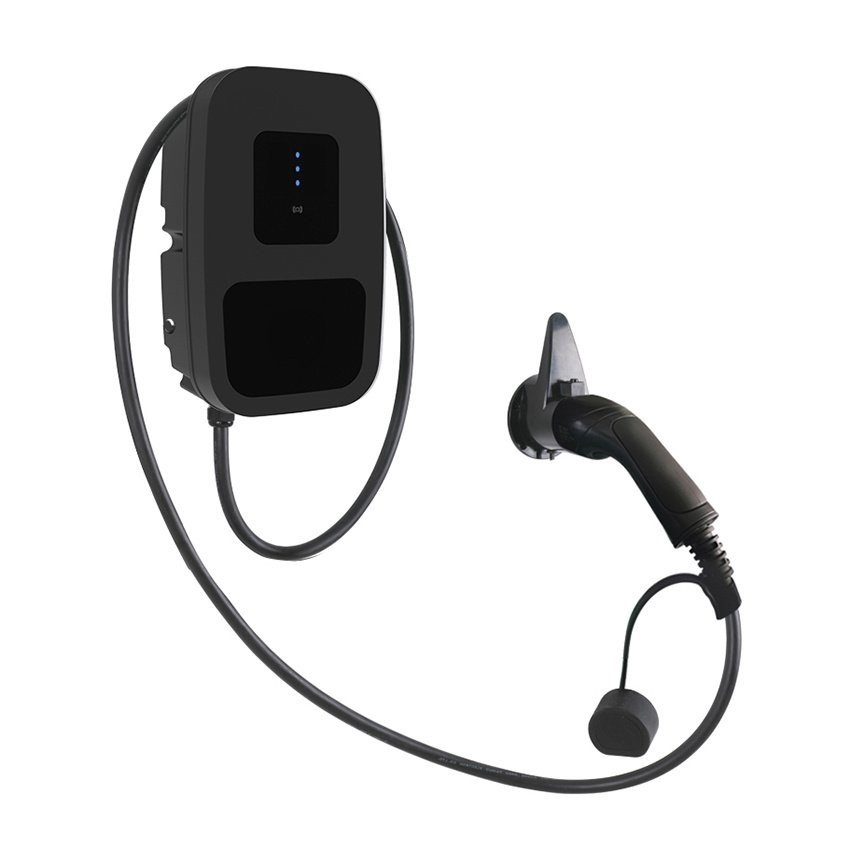

IEC62196 32A 7kw wall box AC charging station

● Max Power:7kw
● Rated Voltage：230V
● Rated Current:32A
● OCPP protocol:OCPP 1.6J
● Communication option:WIFI,4G,Bluetooth
● Protection degree: IP65
● RCD:30mA+DC6mA
● Working temperature: -25℃～+50℃
● Certifications:CE UKCA
● Warranty:2 years

Description

Feature:

Output Power:7kw/11kw/22kw

Adjustable current:6A/8/10/13/16/26/32A

protection measures:Leakage protection, over temperature protection, lightning protection, over current protection,

automatic power failure, under voltage protection, over voltage protection

Feature:

IEC61851.1-2017/IEC62196.2-2016/EN61851.1-2001/EN61851.21-2001
ΕN61851.22-2001/IEC61851.1-2017/IEC62196.2-2016/IEC62752-2018

IEC62196 32A 7kw wall box AC charging station
